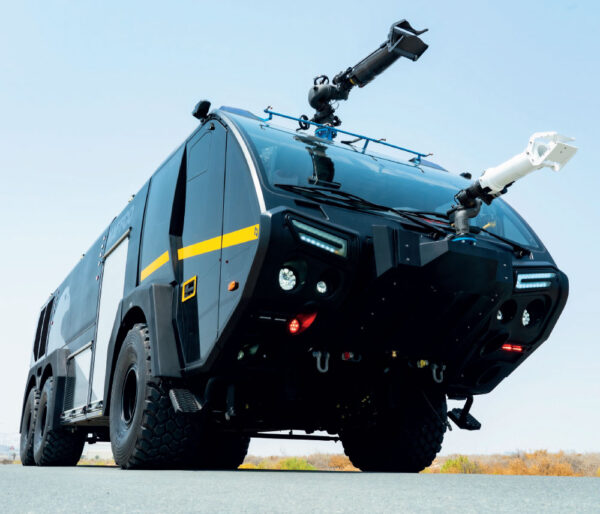

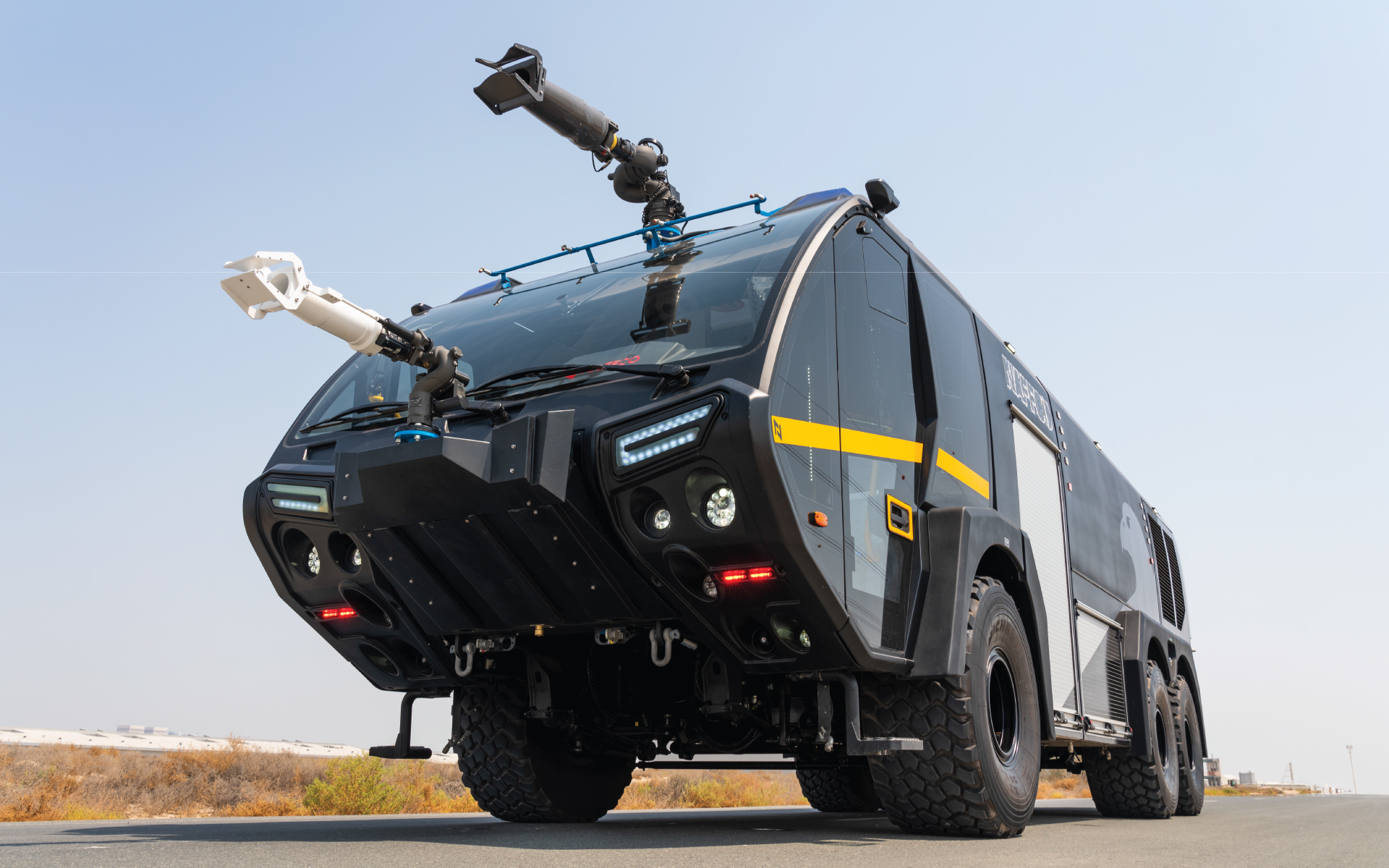

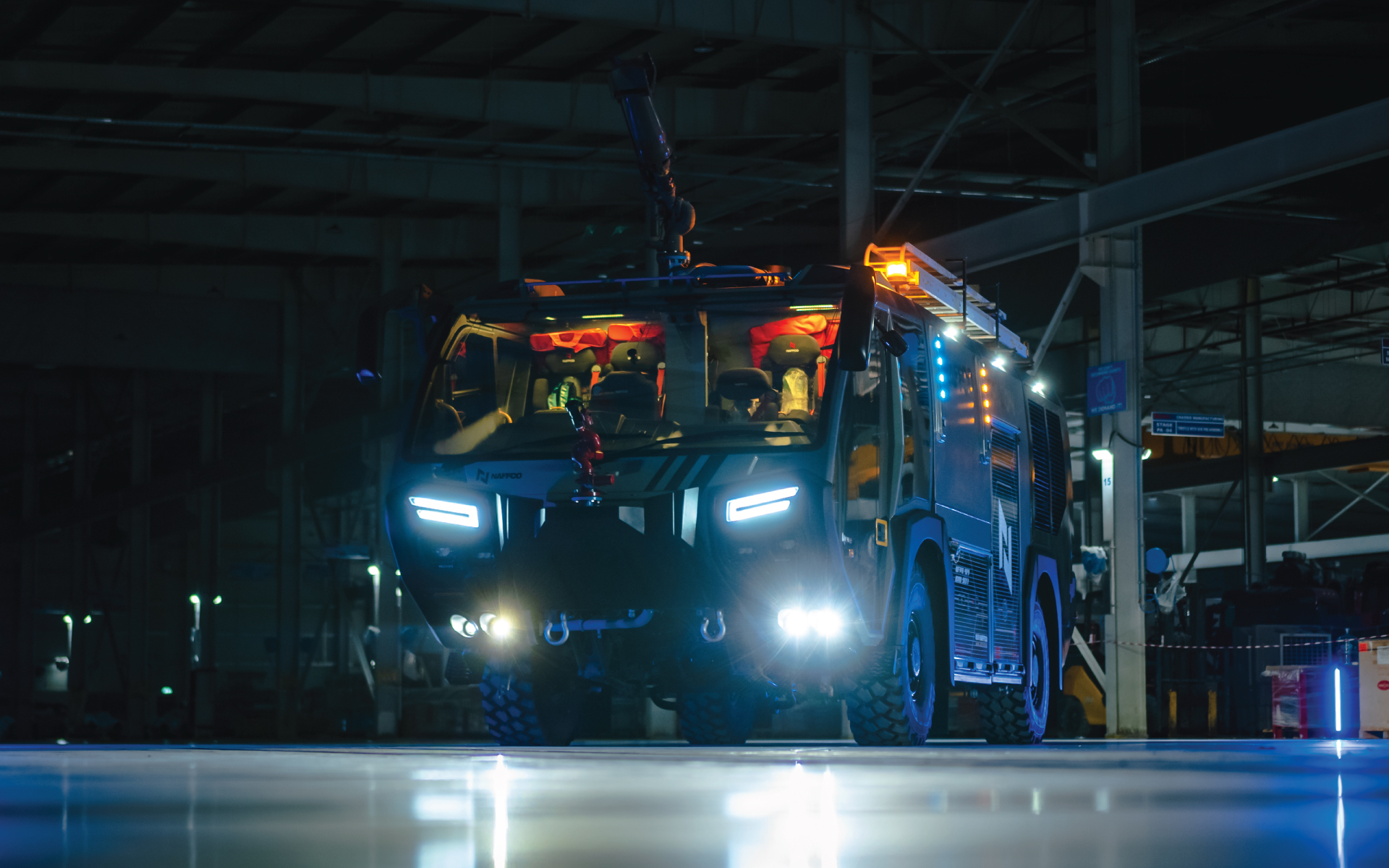

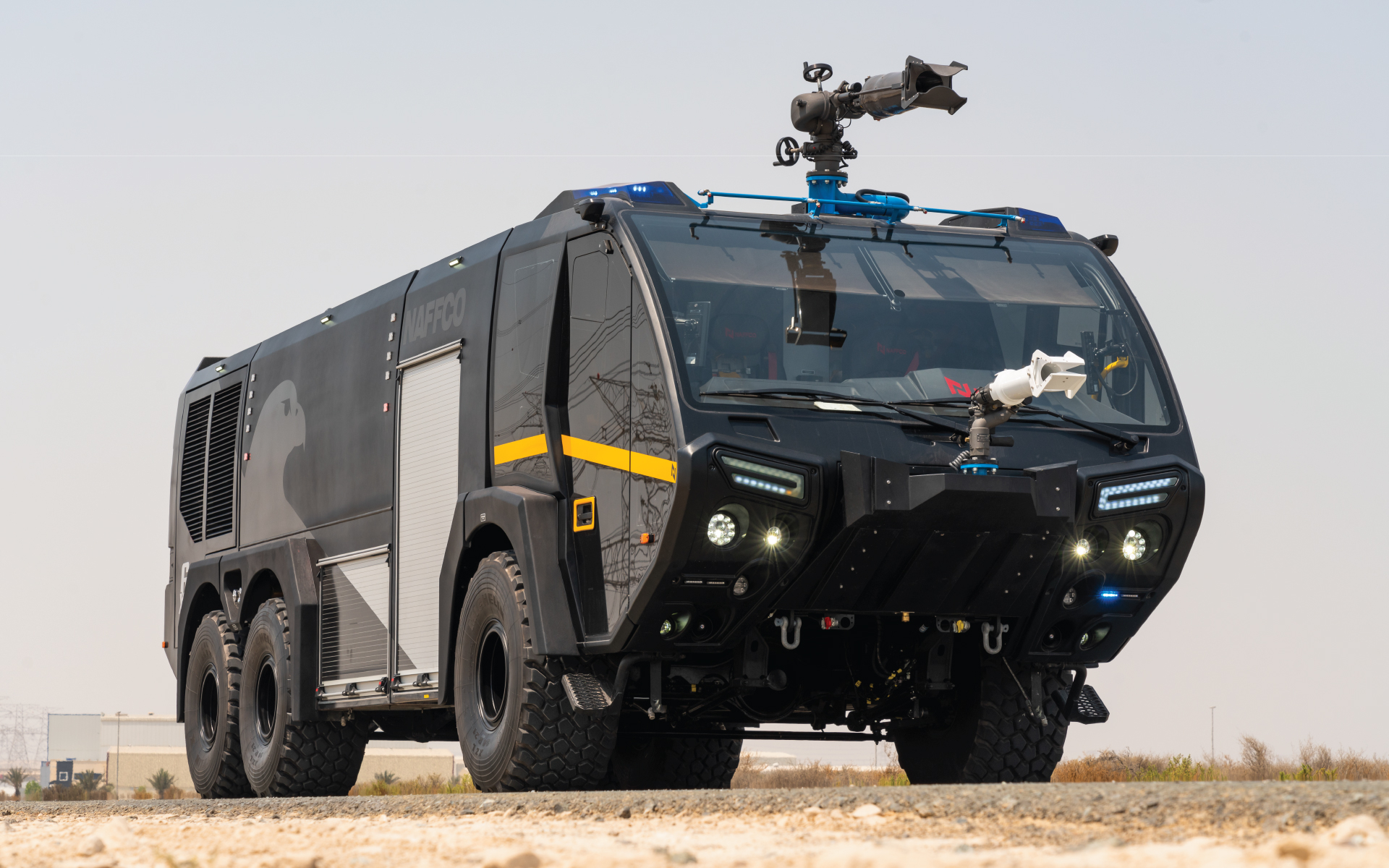

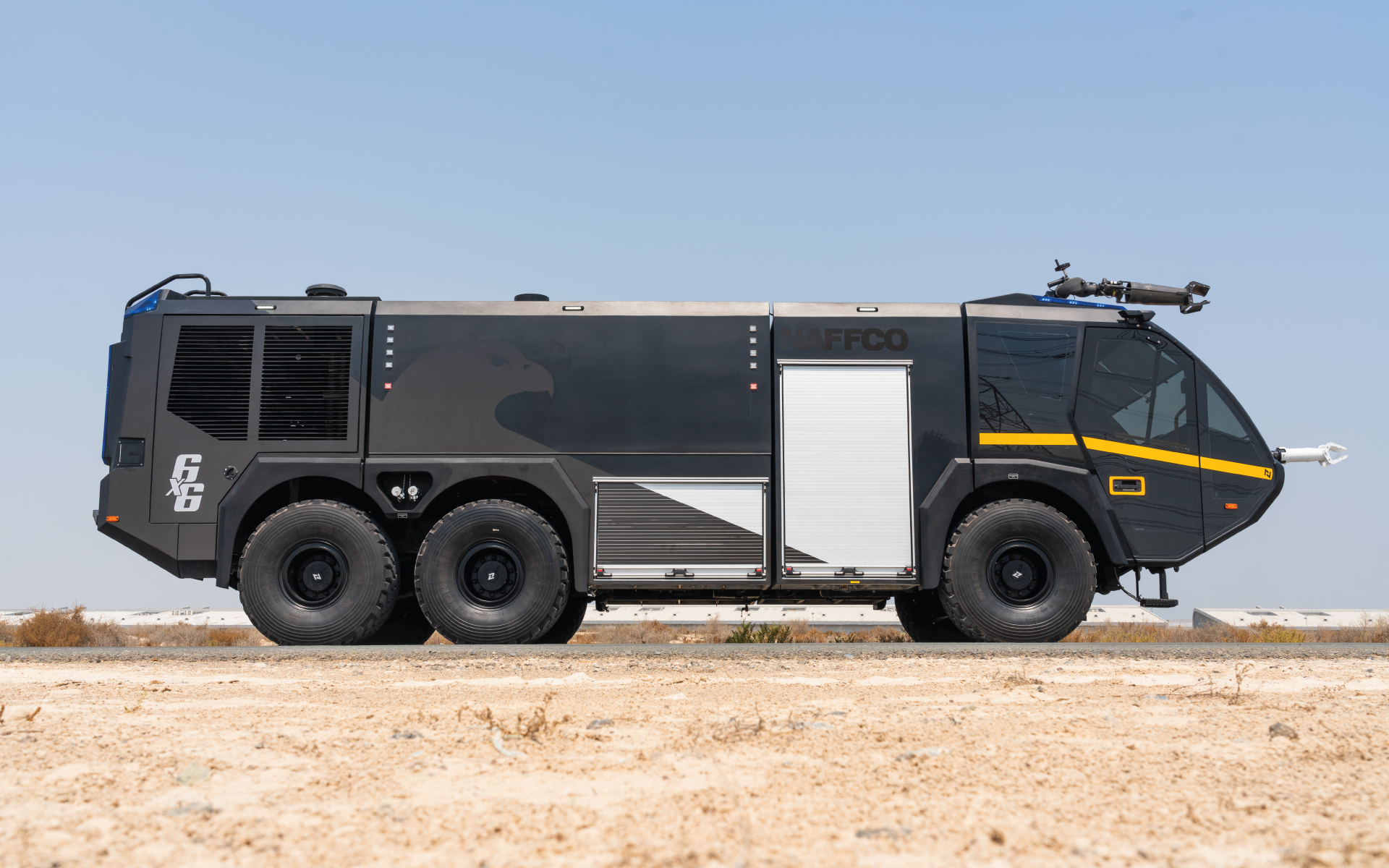

Airport Crash Tender

Specifications

Chassis:

• 522 kW (1900 RPM), 6×6
• Twin Disc Transmission
• Length : 12,000mm
• Width : 3,450mm
• Height : 4,000mm

Crew Cab:

• Aerodynamic GRP external shape and integrated SS 316l tubes roll cage
• Up to six (6) seating capacity
• Driver seat with air suspension
• Crew seat with SCBA bracket
• Heavy duty grey blackdurawear seat cover material.

Storage Compartment:

• 2 (two) storage lockers on each side
• Dust and waterproof
• Automatic Illumination
• Compartments are designed to accommodate a full range of tools and equipment for optimal storage and accessibility.

Water/Foam Tanks:

• Polypropylene (PP)
• Warranty: 15 years

Fire Pump:

• 7,200 LPM @ 12 bar,
Centrifugal Pump
• Gun metal material
• E-Primatic priming system.

Foam Proportioning System:

• UL classified as per NFPA 1901
• NAFFS-AATP
• Electronic controlled proportioning
• 0-6% Foam ratio.

DCP System:

• Output: 2.3-4.5 kg/s
• Hose length: 30 m
• Expellant Gas : Nitrogen

Bumper Monitor:

• Max flow rate 2650 LPM
• Remotely controlled operated
• Air aspirated.

Roof Monitor:

• Adjustable Flow: 6000/3000 Lpm
• Remote control inside the cabin with manual backup on roof
• Air Aspirated.

Electrical System:

• Integrated warning lights
• Scene lights
• Centralized control system
• Tank Level indication on both sides
• HMI Display in driver cabin on both sides for all functions.

Rescue & Firefighting Equipment:

Wide range of rescue and firefighting equipment/tools ICAO related standard tools can be provided.
